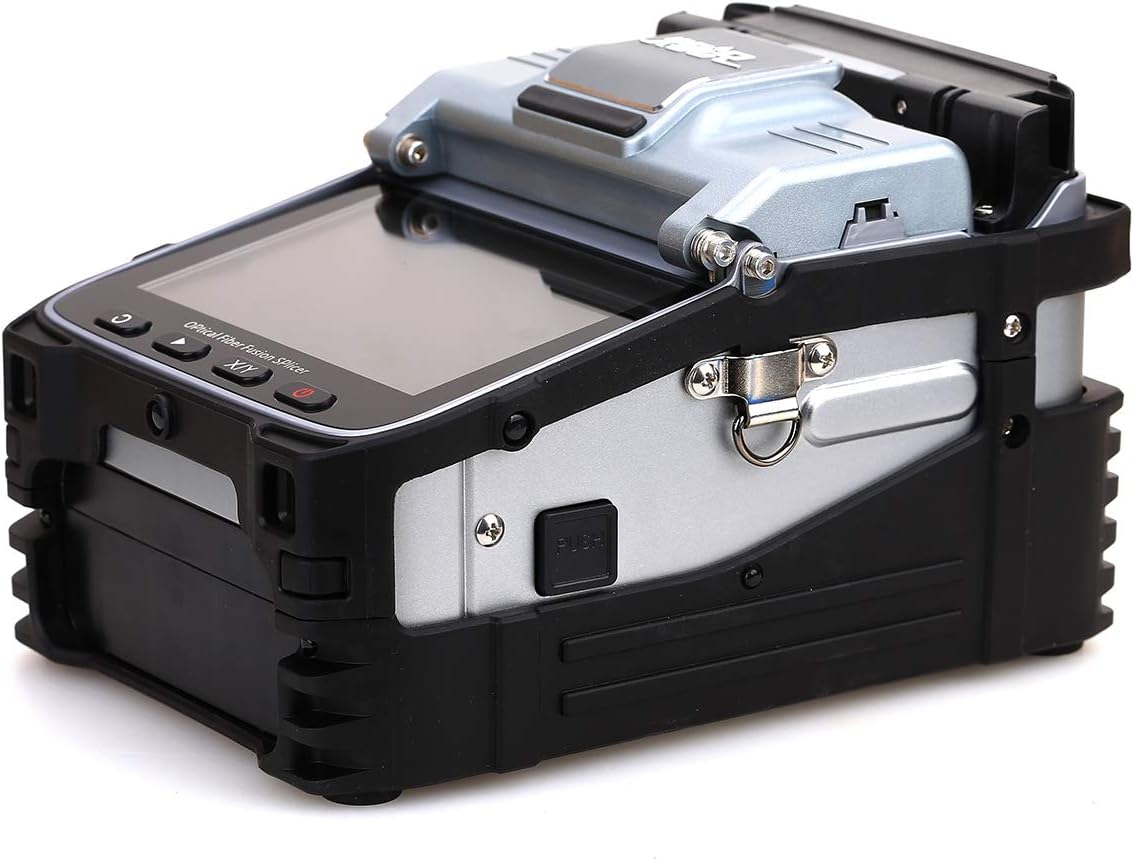

AI-7C SM MM Automatic FTTH Intelligent Optical Fiber Fusion Splicer with Fiber Cleaver

KELUSHI AI-7Cuse the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. Fiber Alignment: Core/cladding alignment/Manual alignment Splicing time: 8S(AI-7) Heating Time: 18S(AI-7) Heating Mode: Automatic Heating (Preheating) Focus Mode: Six motors Auto focus Applicable Fibers: SM(G.652&G.657); MM(G.651); DS(G.657); NZDS(G.655) Splice Loss: 0.025dB(SM); 0.01dB(MM); 0.04dB(DS/NZDS) Control Technology: Real-time control and calibration of fusion ARC Return Loss: Better than 60DB Fiber Diameter: Cladding Diameter:80-150μm; Coating Diameter:100-1000μm Fiber Cleave Length: Coating less than 250μm: 8-16mm; Coating less than 250-1000μm: 16mm Built-in Lighting: Easy for night operation Tension Test: Standard 2N Fiber Holders: 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable Magnification: 300 for X or Y view, 150 for X or Y view Screen: 5 inch TFT color display Splicing Mode: Normal/high precision splicing Splicing Record Storage: Synchronize to the phone, the server to cloud storage unlimited Built-in Battery: 7800 mA high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 200 times Power Supply: Input AC100-240V 50/60HZ, output DC 13.5V/4A,the current power mode can be identified, real-time detection of battery power Operating Conditions: Temperature-15~+50°C, humidity: ＜95% RH (no condensation) Working altitude: 0~5000m; Resist max; Wind speed: ≤15m/s Shrinkable Tube: 60mm; 40mm

• Latest Technology: The machine use the latest core alignment technology with auto focus and six motors, 8 seconds speed core alignment splicing, 18 seconds heating, and use industrial quad-core CPU, fast response.
• Display: 5 Inch TFT Digital High Quality color display, 800X480 High Resolution Screen and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes.
• Core Parts: Using imported brands with exquisite details, Germany Siemens stepper motor, Germany Roth ROUST linear guide, Japan Sanyo lithium battery, Aviation metal material.
• Humanized Design: toolbox is small, exquisite and durable with a unique max bear 230Lb stool design to facilitate the construction workers.
• Intimate Design：unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. 7800 mA high-capacity lithium battery can charge mobile phone.
